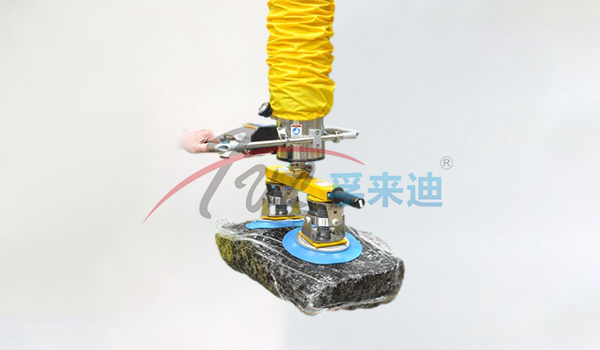

Vacuum Lift Tube Assembly Set Number | Dimensions | Load | ||||
Lift CM | Extended Height CM | Compressed Height CM | Non-porous Loads KG | Semi-porous Loads KG | Porous Loads KG | |
FVL-VT80 | 167 | 280 | 112 | 23 | 16 | 14 |
FVL-VT100 | 167 | 275 | 108 | 43 | 32 | 23 |
FVL-VT120 | 167 | 277 | 110 | 64 | 48 | 32 |
FVL-VT140 | 167 | 277 | 110 | 84 | 64 | 43 |
FVL-VT160 | 167 | 282 | 115 | 102 | 77 | 52 |
FVL-VT180 | 167 | 287 | 120 | 129 | 98 | 66 |
FVL-VT200 | 167 | 287 | 120 | 161 | 120 | 80 |
FVL-VT230 | 167 | 287 | 140 | 214 | 160 | 107 |
FVL-VT250 | 167 | 292 | 124 | 230 | 175 | 125 |
FVL-VT300 | 167 | 292 | 124 | 250 | 195 | 140 |
