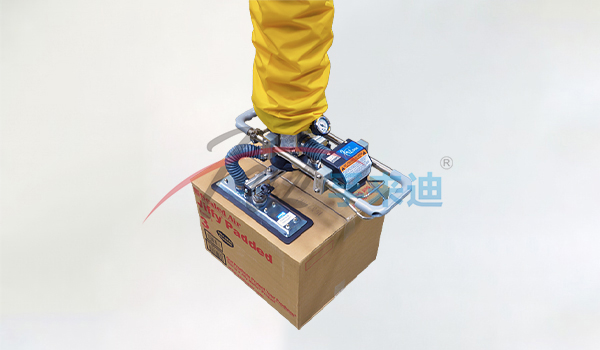

Carton and Bag Vacuum Lifter

Carton and Bag Vacuum Lifter

Vacuum lifters are used in industries such as food, pharmaceuticals, chemicals, and logistics for tasks like palletizing, material feeding.  It features a suspension function, and the lifting, lowering, suction, and release of workpieces are controlled by a single valve lever.

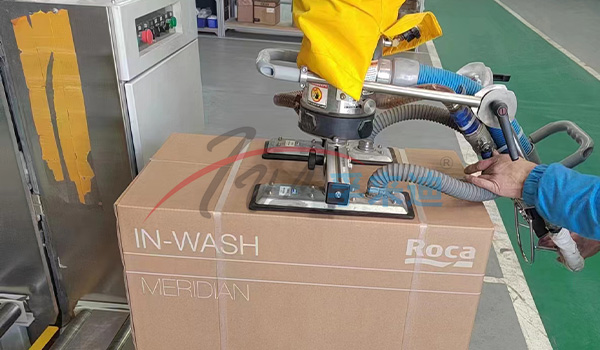

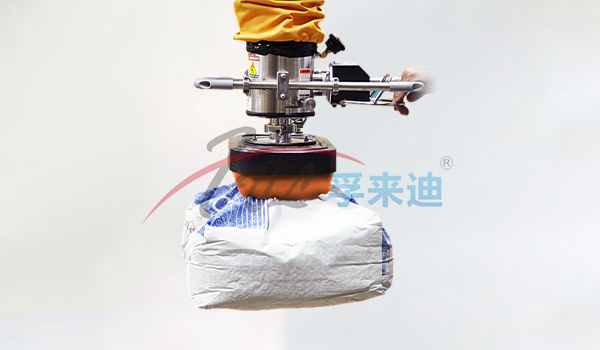

◆ Suitable for handling cardboard boxes, bags, barrels, rubber blocks, etc
◆ Equipped with a vacuum pressure gauge, with a maximum load of 300KG

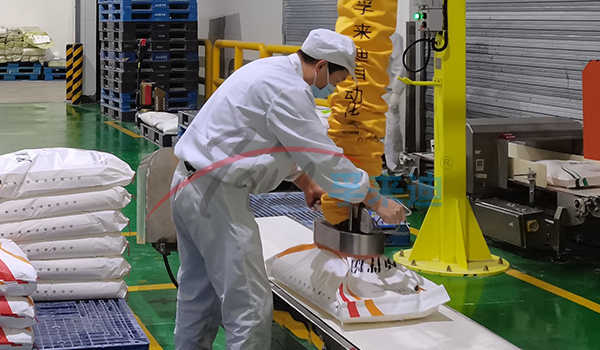

◆ Suitable for assembly line palletizing and bag feeding
◆ Transportation speed of 1 meter/second, with built-in suspension function
◆ The lifting/lowering, suction and release of the workpiece are controlled by the same valve stem
◆ SS304 stainless steel control unit, meeting food grade requirements
◆ Efficient, safe, fast, and labor-saving
◆ The company has passed ISO9001 and its products have passed CE certification
0.00
0.00

Vacuum lifters are used in industries such as food, pharmaceuticals, chemicals, and logistics for tasks like palletizing, material feeding.  It features a suspension function, and the lifting, lowering, suction, and release of workpieces are controlled by a single valve lever.
◆ Suitable for handling cardboard boxes, bags, barrels, rubber blocks, etc
◆ Equipped with a vacuum pressure gauge, with a maximum load of 300KG
◆ Suitable for assembly line palletizing and bag feeding
◆ Transportation speed of 1 meter/second, with built-in suspension function
◆ The lifting/lowering, suction and release of the workpiece are controlled by the same valve stem
◆ SS304 stainless steel control unit, meeting food grade requirements
◆ Efficient, safe, fast, and labor-saving
◆ The company has passed ISO9001 and its products have passed CE certification

PRODUCT DETAILS


Vacuum Lift Tube
Assembly Set Number
DimensionsLoad
Lift
CM
Extended Height
CM
Compressed Height
CM
Non-porous Loads
KG
Semi-porous Loads
KG
Porous Loads
KG
FVL-VT80 167 280 112 23 16 14
FVL-VT100 167 275 108 43 32 23
FVL-VT120 167 277 110 64 48 32
FVL-VT140 167 277 110 84 64 43
FVL-VT160 167 282 115 102 77 52
FVL-VT180 167 287 120 129 98 66
FVL-VT200 167 287 120 161 120 80
FVL-VT230 167 287 140 214 160 107
FVL-VT250 167 292 124 230 175 125
FVL-VT300 167 292 124 250 195 140
Applications
VIDEOs
PRODUCT DETAIL
Vacuum Lift Tube
Assembly Set Number
Dimensions Load
Lift
CM
Extended Height
CM
Compressed Height
CM
Non-porous Loads
KG
Semi-porous Loads
KG
Porous Loads
KG
FVL-VT80167280112231614
FVL-VT100167275108433223
FVL-VT120167277110644832
FVL-VT140167277110846443
FVL-VT1601672821151027752
FVL-VT1801672871201299866
FVL-VT20016728712016112080
FVL-VT230167287140214160107
FVL-VT250167292124230175125
FVL-VT300167292124250195140
