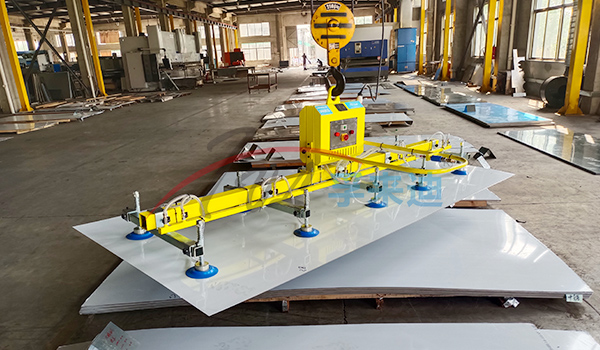

Board Vacuum Lifter

Board Vacuum Lifter

The FVL-B sheet metal suction crane is specifically designed for various sheet metal handling, suitable for loading and unloading various processing machinery. It has long-term cooperation with international and domestic laser cutting machine manufacturers, such as Germany's Trumpf Laser, Switzerland's Bestronic Laser, Japan's Amada Laser, Wuhan Farley Farley, Shanghai Unity Prima Laser, Japan's Mitsubishi Laser, Shenzhen Dazu Laser Hanslaser, Wuhan Chutian Laser, etc.

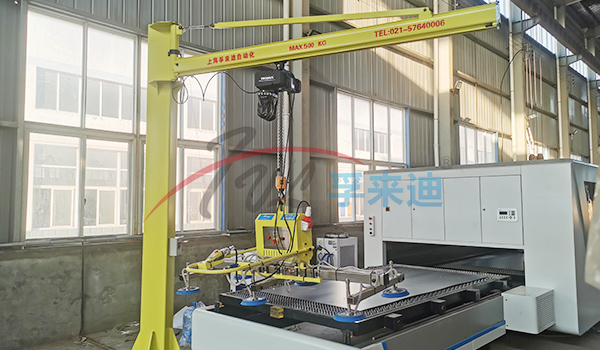

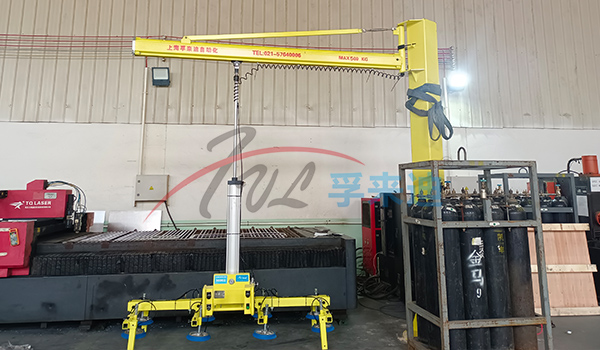

◆ Laser cutting machines, plasma cutting machines, and shearing machines for loading and unloading materials

◆ Suitable for aluminum and stainless steel plates

◆ Imported vacuum pump and valve

◆ Maximum load 2000KG

◆ Accumulators and pressure detection ensure safety

◆ Multiple structures and suction cups available for configuration

◆ Can be applied to high-temperature boards below 400 degrees Celsius

◆ The company has passed IOS9001 and its products have passed CE certification

0.00
0.00


The FVL-B sheet metal suction crane is specifically designed for various sheet metal handling, suitable for loading and unloading various processing machinery. It has long-term cooperation with international and domestic laser cutting machine manufacturers, such as Germany's Trumpf Laser, Switzerland's Bestronic Laser, Japan's Amada Laser, Wuhan Farley Farley, Shanghai Unity Prima Laser, Japan's Mitsubishi Laser, Shenzhen Dazu Laser Hanslaser, Wuhan Chutian Laser, etc.

◆ Laser cutting machines, plasma cutting machines, and shearing machines for loading and unloading materials

◆ Suitable for aluminum and stainless steel plates

◆ Imported vacuum pump and valve

◆ Maximum load 2000KG

◆ Accumulators and pressure detection ensure safety

◆ Multiple structures and suction cups available for configuration

◆ Can be applied to high-temperature boards below 400 degrees Celsius

◆ The company has passed IOS9001 and its products have passed CE certification

PRODUCT DETAILS


Load KgTypemmPadsControl ModePumpPower SourceWeight Kg
mm
(L*W*H)
VHzPhase
300 FVL-B300-6 ø150 6 Manual/Electric VT4.4 12/220/380 50/60 1/3 75 2000*1000*700
FVL-B300-4 ø200 4 Manual/Electric VT4.4 12/220/380 50/60 1/3 70 1800*800*500
600 FVL-B600-6 ø200 6 Manual/Electric VT4.4 12/220/380 50/60 1/3 80 1800*800*700
800 FVL-B800-8 ø200 8 Manual/Electric VT4.8 220/380 50/60 1/3 110 2500*1200*800
1000 FVL-B1000-6 ø300 6 Manual/Electric VT4.8 220/380 50/60 1/3 120 1800*800*700
FVL-B1000-10 ø230 10 Manual/Electric VT4.8 220/380 50/60 1/3 130 3000*1200*800
1200 FVL-B1200-6 ø300 6 Manual/Electric VT4.8 220/380 50/60 1/3 150 3000*1200*700
FVL-B1200-12 ø230 12 Manual/Electric VT4.8 220/380 50/60 1/3 170 4000*1200*1000
1500 FVL-B1500-8 ø300 8 Manual/Electric VT4.8 220/380 50/60 1/3 200 3000*1200*1000
FVL-B1500-16 ø230 16 Manual/Electric VT4.16 220/380 50/60 1/3 400 4000*1200*1000
2000 FVL-B2000-10 ø300 10 Manual/Electric VT4.16 220/380 50/60 1/3 500 4000*1200*800
FVL-B2000-20 ø230 20 Manual/Electric VT4.25 220/380 50/60 1/3 700 6000*1500*1200
Applications
VIDEOs
Load KgTypemmPadsControl ModePumpPower SourceWeight Kg
mm
(L*W*H)
VHzPhase
300FVL-B300-6ø1506Manual/ElectricVT4.412/220/38050/601/3752000*1000*700
FVL-B300-4ø2004Manual/ElectricVT4.412/220/38050/601/3701800*800*500
600FVL-B600-6ø2006Manual/ElectricVT4.412/220/38050/601/3801800*800*700
800FVL-B800-8ø2008Manual/ElectricVT4.8220/38050/601/31102500*1200*800
1000FVL-B1000-6ø3006Manual/ElectricVT4.8220/38050/601/31201800*800*700
FVL-B1000-10ø23010Manual/ElectricVT4.8220/38050/601/31303000*1200*800
1200FVL-B1200-6ø3006Manual/ElectricVT4.8220/38050/601/31503000*1200*700
FVL-B1200-12ø23012Manual/ElectricVT4.8220/38050/601/31704000*1200*1000
1500FVL-B1500-8ø3008Manual/ElectricVT4.8220/38050/601/32003000*1200*1000
FVL-B1500-16ø23016Manual/ElectricVT4.16220/38050/601/34004000*1200*1000
2000FVL-B2000-10ø30010Manual/ElectricVT4.16220/38050/601/35004000*1200*800
FVL-B2000-20ø23020Manual/ElectricVT4.25220/38050/601/37006000*1500*1200
