Glass Vacuum Lifter GS

Glass Vacuum Lifter GS

FVL-GS glass suction crane is mainly used for insulating glass, laminated glass, glass edge grinding machine, tempered glass, unit plate, glass deep processing, solar photovoltaic glass, etc. It can quickly transport glass to improve efficiency, protect the surface of the glass from scratches, and has much higher efficiency and safety than traditional transportation methods.

◆ Suitable for cutting and unloading materials on mid air lines and sandwich lines, as well as handling raw materials and unit blocks

◆ Suitable for high-temperature glass, with a maximum load of 5000KG

◆ Multiple structures and suction cups available for configuration

◆ Can achieve glass flipping and rotating transportation at 0-90 degrees

◆ Adjustable suction cup, can be closed separately

◆ One person can operate it

◆ Efficient, safe, fast, and labor-saving

0.00
0.00

FVL-GS glass suction crane is mainly used for insulating glass, laminated glass, glass edge grinding machine, tempered glass, unit plate, glass deep processing, solar photovoltaic glass, etc. It can quickly transport glass to improve efficiency, protect the surface of the glass from scratches, and has much higher efficiency and safety than traditional transportation methods.

◆ Suitable for cutting and unloading materials on mid air lines and sandwich lines, as well as handling raw materials and unit blocks

◆ Suitable for high-temperature glass, with a maximum load of 5000KG

◆ Multiple structures and suction cups available for configuration

◆ Can achieve glass flipping and rotating transportation at 0-90 degrees

◆ Adjustable suction cup, can be closed separately

◆ One person can operate it

◆ Efficient, safe, fast, and labor-saving

PRODUCT DETAILS


Load KgTypemmPadsControl ModeRotationSwivelPower SourceWeight Kg
mm
（L*W*H）
VHzPhase
200FVL-GS200-23002Manual/Electric90 degrees90 degreesPneumatic--50800*400*300
400FVL-GS400-43004Manual/Electric90 degrees90 degreesPneumatic--70850*750*400
1000FVL-R1000-1030010Manual/Electric360 degrees90 degreesPneumatic501/33002500*1200*1200
2000FVL-R2000-2030020Manual/Electric360 degrees90 degreesPneumatic501/36004000*2000*1500
3000FVL-R3000-2030030Manual/Electric360 degrees90 degreesPneumatic501/38008000*2000*1500

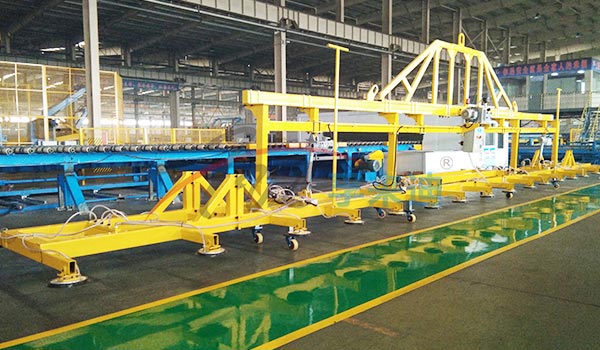

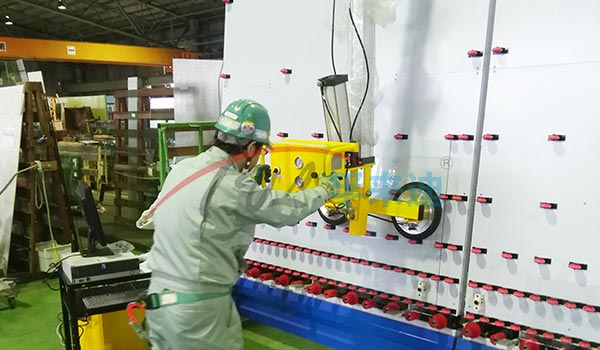

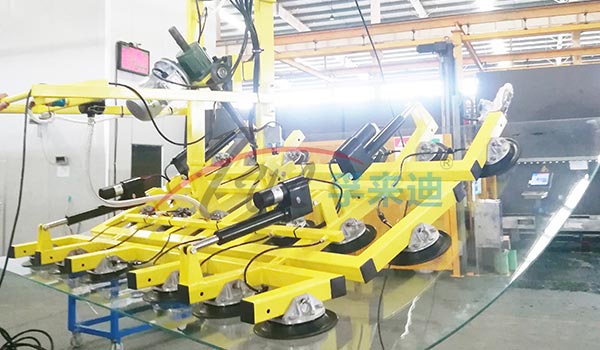

Applications
VIDEOs
PRODUCT DETAIL
Load KgTypemmPadsControl ModeRotationSwivelPower SourceWeight Kg
mm
（L*W*H）
VHzPhase
200FVL-GS200-23002Manual/Electric90 degrees90 degreesPneumatic--50800*400*300
400FVL-GS400-43004Manual/Electric90 degrees90 degreesPneumatic--70850*750*400
1000FVL-R1000-1030010Manual/Electric360 degrees90 degreesPneumatic501/33002500*1200*1200
2000FVL-R2000-2030020Manual/Electric360 degrees90 degreesPneumatic501/36004000*2000*1500
3000FVL-R3000-2030030Manual/Electric360 degrees90 degreesPneumatic501/38008000*2000*1500
