Glass Vacuum Lifter

Glass Vacuum Lifter

The FVL-G glass electric suction cup is driven by a DC battery and does not require cable connection, solving the problem of inconvenient power supply on construction sites. It is especially suitable for high-altitude curtain wall glass installation and can be customized according to the size of the glass.

◆ Select imported DC charging vacuum pump, equipped with a battery

◆ Glass can reach a length of up to 15m and a width of 4m

◆ Suitable for high-temperature glass below 300 degrees Celsius

◆ Can achieve glass flipping and transportation at 0-90 degrees

◆ Can achieve 0-360 degree rotation and transportation of glass

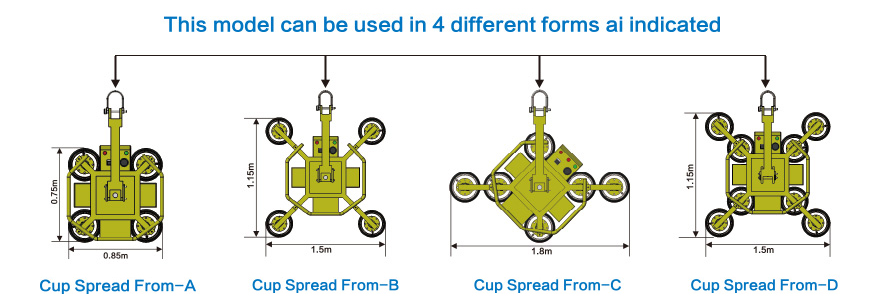

◆ Multiple structures and suction cups available for configuration, equipped with digital pressure gauges

◆ Accumulators and pressure detection ensure safety

◆ Efficient, safe, fast, and labor-saving

The company has passed ISO9001 and its products have passed CE certification

0.00
0.00


The FVL-G glass electric suction cup is driven by a DC battery and does not require cable connection, solving the problem of inconvenient power supply on construction sites. It is especially suitable for high-altitude curtain wall glass installation and can be customized according to the size of the glass.

◆ Select imported DC charging vacuum pump, equipped with a battery

◆ Glass can reach a length of up to 15m and a width of 4m

◆ Suitable for high-temperature glass below 300 degrees Celsius

◆ Can achieve glass flipping and transportation at 0-90 degrees

◆ Can achieve 0-360 degree rotation and transportation of glass

◆ Multiple structures and suction cups available for configuration, equipped with digital pressure gauges

◆ Accumulators and pressure detection ensure safety

◆ Efficient, safe, fast, and labor-saving

The company has passed ISO9001 and its products have passed CE certification

PRODUCT DETAILS


Load KgTypemmPadsControl ModeRotationSwivelPower SourceWeight Kg
mm
(L*W*H)
VHzPhase
400FVL-G400-43004Manual/Electric360 degrees90 degrees12/220/38050/601/370850*750*300
1200*900*300
1600*400*300
600FVL-G600-63006Manual/Electric360 degrees90 degrees12/220/38050/601/3901500*1150*300
1800*1000*300
800FVL-G800-83008 Manual/Electric360 degrees90 degrees12/220/38050/601/31001500*1150*300
2500*1400*300
1000FVL-G1000-1030010Manual/Electric360 degrees90 degrees12/220/38050/601/3   2002500*1000*500
4000*1000*500
2000FVL-G2000-2030020Manual/Electric360 degrees90 degrees12/220/38050/601/33505000*1200*600
800*400*300
3000FVL-G3000-30300 30Manual/Electric360 degrees90 degrees12/220/38050/60    1/38008000*1500*1200


Applications
