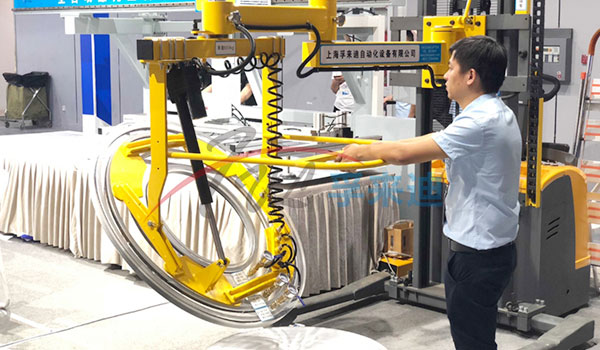

Coil Vacuum Lifter

Coil Vacuum Lifter

The FVL-C coil suction crane is suitable for handling the vast majority of coil materials, including steel coils, copper coils, aluminum coils, kraft paper coils, etc. It is also suitable for coil materials. Due to its special process and unique shape, traditional handling methods cannot meet customer needs. The vacuum suction cup for coil materials can quickly complete vacuum handling work and solve most problems.

◆ Multiple independent chambers can be used for rolls of various diameter specifications

◆ It can achieve vertical 0-90 degree electric flipping and handling

◆ Maximum bearing capacity 2000kg

◆ It can be applied to high-temperature strip coils

◆ It can be selected according to actual working conditions and customized according to customer requirements

◆ The company has passed ISO9001 and its products have passed CE certification

0.00
0.00


The FVL-C coil suction crane is suitable for handling the vast majority of coil materials, including steel coils, copper coils, aluminum coils, kraft paper coils, etc. It is also suitable for coil materials. Due to its special process and unique shape, traditional handling methods cannot meet customer needs. The vacuum suction cup for coil materials can quickly complete vacuum handling work and solve most problems.

◆ Multiple independent chambers can be used for rolls of various diameter specifications

◆ It can achieve vertical 0-90 degree electric flipping and handling

◆ Maximum bearing capacity 2000kg

◆ It can be applied to high-temperature strip coils

◆ It can be selected according to actual working conditions and customized according to customer requirements

◆ The company has passed ISO9001 and its products have passed CE certification

PRODUCT DETAILS


Load KgTypemmControl ModePumpPower SourceWeight Kg
mm
(L*W*H)
VHzPhase
300FVL-C300350Manual/ElectricVT4.16220/38050/601/3200350*500
450FVL-C450600Manual/ElectricVT4.16220/38050/601/3300600*600
600FVL-C600900Manual/ElectricVT4.25220/38050/601/3400900*650
1000FVL-C10001200Manual/ElectricVT4.40220/38050/601/34501200*650
2000
FVL-C20001500Manual/ElectricVT4.40220/38050/601/36001500*800
Applications
